Support Beams

What do the beams support in a house?

The beams are typically installed after the crawl space or basement foundation has been constructed. Once in place, they support the floor above, which generally includes directly the supporting the floor joists. Generally, if there are additional floors above, their respective loads are passed through the beams at or near the support bearing locations.

Are walls and beams load-bearing in a house?

To determine if a wall or beam is load-bearing, inspect the foundation and floor structure. Walls or beams that are directly connected to a home’s foundation are typically load-bearing, especially in cases where there are additions to the house. It is common for interior walls that were previously exterior walls to serve as load-bearing walls.

Crawl Space Repair - Crawl Space Jacks
Crawl Space Repair - Crawl Space Jacks

Can you remove a load-bearing wall in a house?

Walls which are load bearing can be removed, but it is a complex process which you need a structural engineer to oversee and a building permit so the design is reviewed by your local building department. There are a lot of factors that affect the difficulty and cost of this undertaking.

Can you remove or relocate a column in a house?

A column or pillar in a house is a structural element that transmits, through compression, the load of the structure above to structural elements below. Altering or removing a column in a house requires a plan from a licensed structural engineer and a building permit in Virginia, Maryland, and Washington DC.

Is an engineer required to remove a load-bearing wall in a house?

If you intend to alter or remove a load-bearing wall, a structural engineer should be consulted to assist in developing a plan of action while ensuring that the home’s structural stability and integrity are maintained. Modifying or removing a load-bearing wall without seeking expert recommendations can be dangerous and result in damage to the structure of the house and safety issues.

Is a permit required to remove a load-bearing wall in a house?

Load-bearing walls are essential components of a house’s structure and demand thoughtful consideration before modification or removal. Altering or removing load-bearing walls requires a plan from a licensed structural engineer and a building permit in Virginia, Maryland, and Washington DC.

What’s the difference between a beam and a joist?

A beam is the main load-bearing structural element of a floor. It supports the weight of the floor joists and other building elements. A joist is a horizontal member that generally runs across a floor and is supported by a beam. Generally, beams support many floor joists and beams have a significantly higher load capacity than floor joists.

Where should beams be placed in a house?

Beams shall typically be installed under the load-bearing walls or below heavy concentrated loads to provide adequate support to the structure above. The beam should transfer the loads above to columns or adjacent foundation walls.

What material are beams made of in a house?

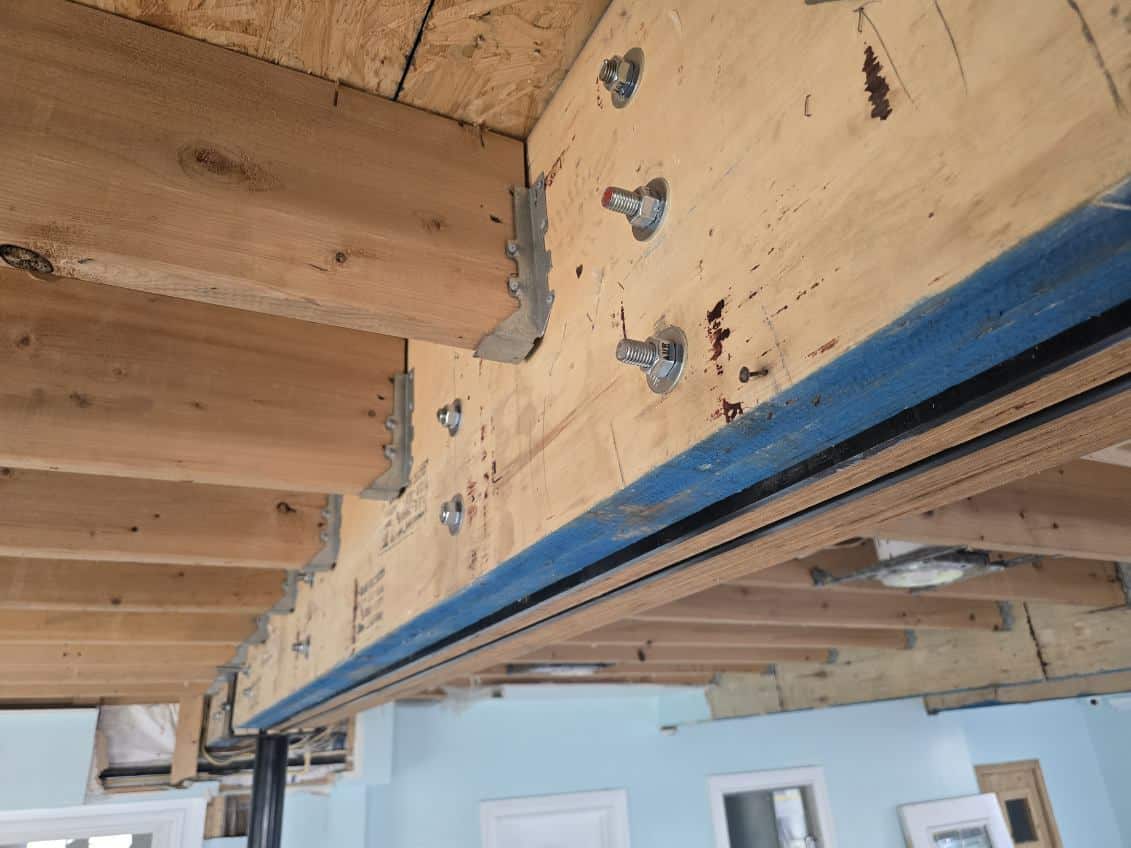

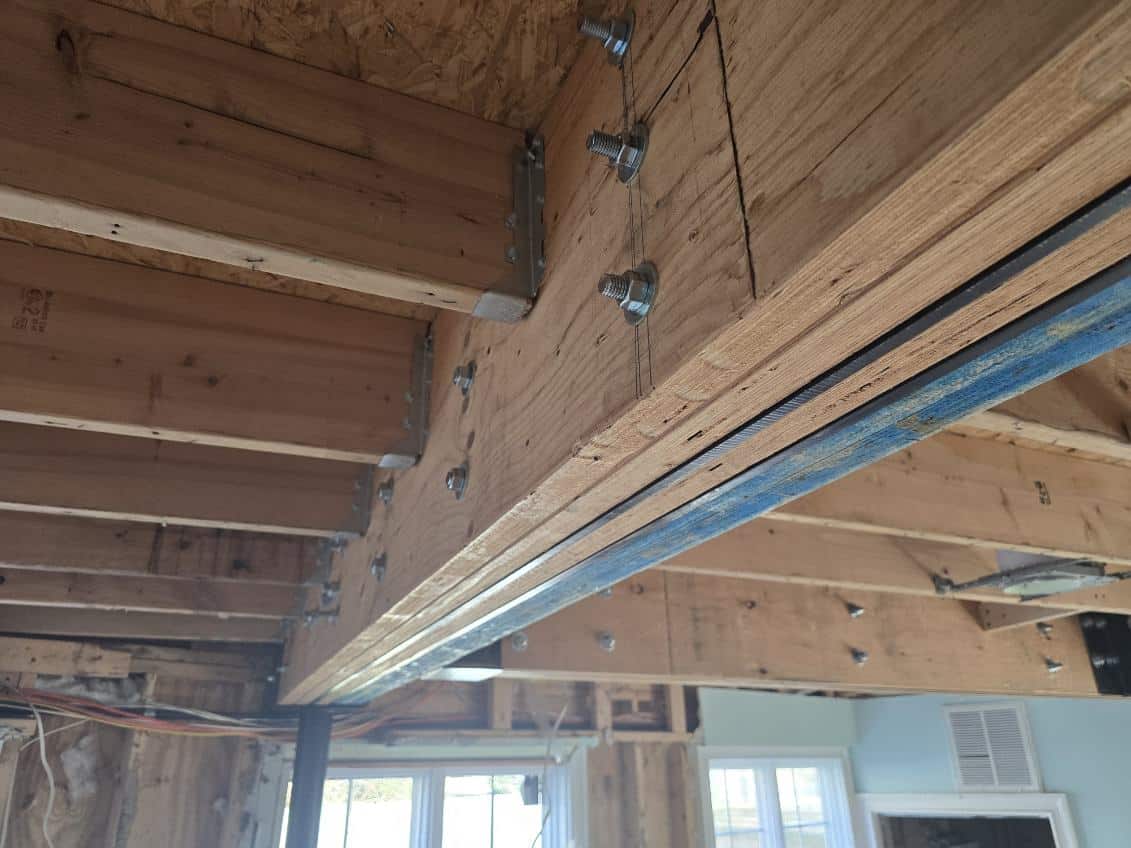

Beams are typically made of steel, timber, LVL (Laminated Veneer Lumber), and Glulam (Glue Laminated Timber) to support floors in a house.

Is it okay to cut into floor beams?

The building code has established specific guidelines on where a beam can be cut, notched, or cored. These guidelines include limits on the depth and length of notches, and the size of core holes. The extent of these limits vary depending on the size of the beam and the vertical and horizontal location of the alteration along the span of the beam. It is advisable to consult with a licensed structural engineer before altering a beam.

How much is my floor beam allowed to sag?

The building codes that govern framed floors allow for some amount of sagging, which may seem concerning at first. However, the permissible limit is only 1/360 of the span, which is relatively minor. For example, if you had a 30-foot-long beam, the amount of sag permitted under this code would be just one inch.
